ZF parts

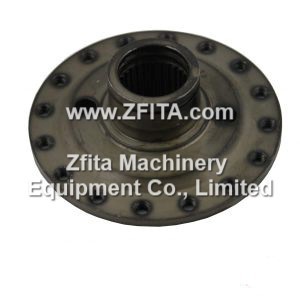

ZF 4wg180, ZF 4WG 200 parts, 4166332190 Flange

Part number： ZF 4wg180, ZF 4WG 200 parts, 4166332190 Flange
Position number： ZF 4wg180, ZF 4WG 200 parts, 4166332190 Flange
Used on： ZF 4wg180, ZF 4WG 200 parts, 4166332190 Flange

4WG180 4WG200 TRANSMISSION SPARE PARTS
PARKING BRAKE 4644 109	4 0501307817 BOLT 0501 307 817
1 0501003819 BRAKE STAFF 0501 003 819	5 0501300407 WASHER 0501 300 407
2 4644309002 BRAKE STAFF 4644 309 002	6 0630501018 CLASP 0630 501 018
3 4644309001 FLANGE 4644 309 001	7 0501207745 BRAKE CAM 0501 207 745
4 0636020082 SCREW 0636 020 082	POWER TAKE-OFF 4644 154
5 0636015166 SCREW 0636 015 166	1 384644311196 SHAFT Z=384644311196
6 0630001014 WASHER 0630 001 014	2 0750116259 BALL BEARING 0750 116 259
7 4644309008 FIXED DIKK 4644 309 008	3 0630503011 RETAINING RING (SP85)0630 503 011
8 4644309066 WASHER 4644 309 066	4 0630501033 CLASP 0630 501 033
9 0730107676 WASHER 0730 107 676	5 4644311214 SEALING RING 4644 311 214
10 0636010159 SCREW 0636 010 159	6 0636015077 HEXAGON SCREW 0636 015 077
11 0636015115 SCREW 0636015115	7 0636610014 DOUBLE-SCREW BOLT 0636 610 014
12 0634306017 O-RING 0634 306 017	8 0637006018 NUT 0637 006 018
13 0634306024 O-RING 0634 306 024	9 4644311120 HOUSING 4644 311 120
PARKING BRAKE 0501 003	10 4644311117 DRIVEN GEAR 4644 311 117
1 0501206285 SHOE CONTACT 0501 206 285	11 0630513068 RETAINING RING 0630 513 068
2 0501300460 EXTENSION SPRING 0501 300 460	12 0635303104 NEEDLE BEARING 0635 303 104
3 0501307818 BOLT 0501 307 818	13 0630513016 RETAINING RING 0630 513 016

1. 7200001532  4644351076 SHAFT 4644351076
2. 7200001533  (493)0634313536 O-RING (493)0634313536
3. 7200001534  0734401106 PISTON RING 0734401106
4. 7200001535  (M830)0636610026 DOUBLE-SCREW BOLT (M830)0636610026
5. 7200001674  0636610014 DOUBLE-SCREW BOLT 0636610014
6. 7200001675  (M8)0637006018 NUT (M8)0637006018
7. 7200001621  0730003501 S=0.4 WASHER 0730003501 S=0.4
8. 4110000042052  s=0.6 0730 003 502 SHIM S=0.6 0730 003 502
9. 4110000042053  s=0.8 0730 003 503 SHIM S=0.8 0730 003 503
10. 4110000042054  s=1.0 0730 003 504 SHIM S=1.0 0730 003 504
11. 4110000042055  s=1.2 0730 003 505 SHIM S=1.2 0730 003 505
12. 4110000042056  s=1.4 0730 108 157 SHIM S=1.4 0730 108 157
13. 4110000042057  s=1.6 0730 108 158 SHIM S=1.6 0730 108 158
14. 4110000042058  s=1.8 0730 108 159 SHIM S=1.8 0730 108 159
15. 4110000042059  s=2.0 0730 108 160 SHIM S=2.0 0730 108 160
16. 4110000042060  s=2.2 0730 108 161 SHIM S=2.2 0730 108 161
17. 4110000042061  s=2.4 0730 108 162 SHIM S=2.4 0730 108 162
18. 4110000042062  s=2.6 0730 108 163 SHIM S=2.6 0730 108 163

19. 4110000042063  s=2.8 0730 108 164 SHIM S=2.8 0730 108 164
20. 7200001539  0730150759 THRUST WASHER 0730150759
21. 7200001540  4644303529 THRUST WASHER 4644303529
22. 7200001583  (Z=63)4644308625 GEAR (Z=63)4644308625
23. 7200001542  4644308265 THRUST WASHER 4644308265
24. 7200001543  0730150773 THRUST WASHER 0730150773
25. 7200001544  0750119100 ROLL.BEARING ASSEMBLY 0750119100
26. 7200001545  4644308266 WASHER 4644308266
27. 7200001546  4644308071 WASHER 4644308071
28. 7200001547  4644351070 PISTO644351070
29. 7200001590  0750112139 PACKING RING 0750112139
30. 7200001549  4644351094 THRUST WASHER 4644351094
31. 7200001550  4642308555 THRUST WASHER 4642308555
32. 7200001551  0750112140 PACKING RING 0750112140
33. 7200001552  0732041183 PRESSURE SPRING 0732041183
34. 7200001553  4642308083 GUIDE RING 4642308083
35. 7200001554   AV550630531346 V-CUP AV550630531346
36. 7200001555  4642308084 GUIDE RING 4642308084

37. 7200001556  0635303203 NEEDLE BEARING 0635303203
38. 7200001557  0730513610 RETAINING RING 0730513610
39. 7200001558  0635303205 NEEDLE BEARING 0635303205
40. 7200001559  0730513611 RETAINING RING 0730513611
41. 7200001560  0730513181 A=2.50 RETAINING RING 0730513181 A=2.50
42. 4110000042020  A= 2.30 0730 513 434 SNAP RING A= 2.30 0730 513 434
43. 4110000042023  A= 2.40 0730 513 436 SNAP RING A= 2.40 0730 513 436
44. 4110000042018  A= 2.20 0730 513 459 SNAP RING A= 2.20 0730 513 459
45. 4110000042015  A= 2.10 0730 513 457 SNAP RING A= 2.10 0730 513 457
46. 7200001561 0730150779 THRUST WASHER 0730150779
47. 7200001562   4644351032 GEAR 4644351032
48. 7200001563   (752.5)0630502037 CLASP (752.5)0630502037
49. 7200001564 (60750.3)0630004168 AJUSTING SHIM (60750.3)0630004168
50. 4110000042037 0630 000 055 SHIM RING 0630 000 055
51. 4110000042036 0630 000 054 SHIM RING 0630 000 054
52. 4110000042040 0630 004 246 SHIM RING 0630 004 246
53. 4110000042038 0630 004 232 SHIM RING 0630 004 232
54. 4110000042039 0630 004 233 SHIM RING 0630 004 233

55. 4110000042041 0630 004 364 SHIM RING 0630 004 364
56. 7200001565   0735358132 ROLING NEEDLE ASSEMBLY 0735358132
57. 7200001566    0501308830 CERATOCRICOID MUSCLE 0501308830
58. 7200001568   0750116100 BALL BEARING 0750116100
59. 4110000042112   4644 251 046 DISC CARRIER 4644 251 046
60. 7200001570   0501309330 OUTER CLUTCH DISC 0501309330 2
61. 7200001571  4644308329 INTERNAL FRICTION BLOCK 4644308329
62. 7200001572  4644308330 INTERNAL FRICTION BLOCK 4644308330

4WG180 4WG200 TRANSMISSION SPARE PARTS
COUPLNG 4644 153	28 4642308555 THRUST WASHER 4642 308 555
1 4644353058 SHAFT 4644 353 058	29 0750112140 PACKING RING 0750 112 140
2 0634313536 O-RING (49*3)0634 313 536	30 0732041183 PRESSURE SPRING 0732 041 183
3 0734401106 PISTON RING 0734 401 106	31 4642308083 GUIDE RING 4642 308 083
4 0636610014 SCREW BOLT 0636 610 014	32 550630531346 V-CUP 550630531346
5 0637006018 NUT 0637 006 018	33 4642308084 GUIDE RING 4642 308 084
6 0730003501 WASHER 0730 003 501	34 0750115182 NEEDLE BEARING 0750 115 182
7 0730003502 SHIM S=0.6 0730 003 502	35 0730513610 RETAINING RING 0730 513 610
8 0730003503 SHIM S=0.8 0730003503	36 0635303204 NEEDLE BEARING 0635 303 204
9 0730003504 SHIM S=1.0 0730 003 504	37 0730513611 RETAINING RING 0730 513 611
10 0730003505 SHIM S=1.2 0730 003 505	38 0730513420 A=2.25 RETAINING RING 0730513420
11 0730108157 SHIM S=1.4 0730 108 157	39 0730513419 SNAP RING A= 2.30 0730 513 419
12 0730108158 SHIM S=1.6 0730 108 158	40 0730513418 SNAP RING A= 2.35 0730 513 418
13 0730108159 SHIM S=1.8 0730 108 159	41 0730513417 SNAP RING A= 2.40 0730 513 417
14 0730108160 SHIM S=2.0 0730 108 160	42 0730513416 SNAP RING A= 2.45 0730 513 416
15 0730108161 SHIM S=2.2 0730 108 161	43 0730513180 SNAP RING A= 2.50 0730 513 180
16 0730108162 SHIM S=2.4 0730 108 162	44 0730513421 SNAP RING A= 2.20 0730 513 421
17 0730108163 SHIM S=2.6 0730 108 163	45 0730513455 SNAP RING A= 2.15 0730 513 455
18 0730108164 SHIM S=2.8 0730 108 164	46 0730513456 SNAP RING A= 2.10 0730 513 456
19 0730150759 THRUST WASHER 0730 150 759	47 0730150779 THRUST WASHER 0730 150 779
20 4644303534 THRUST WASHER 4644 303 534	48 0730109643 WASHER 0730 109 643
21 4644308587 GEAR 4644 308 587	49 4644308630 SPUR GEAR 4644 308 630
22 0730150777 THRUST WASHER 0730 150 777	50 0750115109 SEALING RING ASSEMBLY 0750 115 109
23 0735358069 NEEDLE BEARING 0735 358 069	51 0750119048 ROLLER 0750 119 048
24 4642308185 WASHER 4642 308 185	52 4644253045 DISC SUPPORT 4644 253 045
25 4644353051 PISTON 4644 353 051	53 0501309329 OUTER CLUTCH DISC 0501 309 329
26 0750112141 SEALING RING 0750 112 141	54 4642308330 INTERNAL FRICTION BLOCK 4642 308 330
27 4644351094 THRUST WASHER 4644 351 094	55 4642308332 INTERNAL FRICTION BLOCK 4642 308 332
28 4642308555 THRUST WASHER 4642 308 555	56 4642308331 INTERNAL FRICTION BLOCK 4642 308 33
